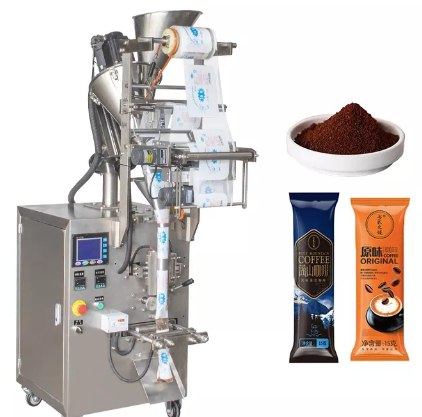

High End Powder Filling Packing Machine With PLC Touch Screen

Product Categories
Foshan Shilong Packaging Machinery Co., Ltd.
Contact Now

High End Powder Filling Packing Machine With PLC Touch Screen

Brand Name : Shilong

Model Number : SLIV-520/420

Certification : CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : 15-25/day

Delivery Time : 100 Set/Month

Packaging Details : 1700( L ) x 1350 ( W ) x 1800 ( H )mm

Measuring range : 10L (subject to actual materials)

Packing speed : 5 - 50 bags/min

Maximum width of roll film : 730mm

Total power : 4kw

Power supply : 220V or 380V 50 - 60HZ

Air pressure and air consumption : 0.65Mpa 0.8m3/min

Machine weight : 700kg

Machine size : 1700( L ) x 1350 ( W ) x 1800 ( H )mm

Contact Now

Wholesale High-end Powder Filling Packing Machine With PLC Touch Screen

Application

This machine adopts the advanced PLC operation system, and the Chinese/English screen, easy to manipulate and maintain.This machine can pack the powder of food stuff and chemicals, such as flour,soybean powder,milk powder and medicine powder.

Main Features


1 . The amplitude of vibrator can be auto-modified for more efficient weighing.
2 . High precise digital weighing sensor and AD module have been developed.
3 . Multi-drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
4 . Material collecting system with function of unqualified product remove, two direction discharge, counting, restore default setting.
5 . Multi-language operation system can be selected basing on customer's requests.
6 . Easy to install film, auto correcting the excursion of the film.
7 . Use superior mechanical components, reduce the wear out loss.

Machine composition


1 . Hot stamp ribbon coder
2 . Batch cutter
3 . Vacuum loader
4 . On-line check weighting with auto feedback weight

Powder Packaging Machine Specification

Packing Machine
Model
SLIV - 520
SL - 420
SL - 320
Packing material
OPP / CPP OPP/PE NILO / PE PE
Measurement accuracy
Defect rate ≤ 0.5 - 1% depends on packaging speed and material weight
Measuring range
4000ML
2500ML
800ML
Bag size
W : 150 - 250mm L : 400 mm
W : 150 - 250 mm L : 400 mm
W : 50-150mm L: 50 ~ 200mm
Packing speed
5 - 50( bags / min )
5-60 bags / min
10-50 bags / min
Max film width
520mm
420mm
320mm
Voltage
220V AC / 50HZ
220V AC / 50HZ
220V AC / 50HZ
220V AC/50HZ
4kW
3kW
3kW
Weight
450kW
400kW
300kW

High End Powder Filling Packing Machine With PLC Touch Screen
